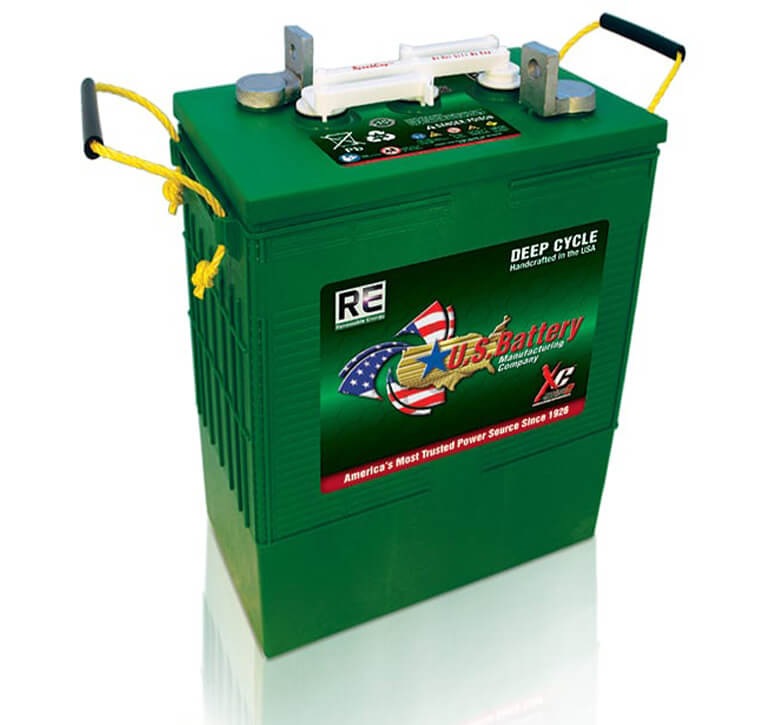

US RE L16 XC2
Voltage
6-Volt Deep Cycle – Renewable Energy
Dimensions
Length: Without Handles– 11 7/8” (302mm)
Length: With Handles– 12-7/16″ (315mm)
Width: 7 1/8” (181mm)
Height: 16 3/4” (425mm)
Type
Flooded Lead Acid (FLA) non-sealed.
Application
Wherever Deep Cycle 6-volt batteries are needed.
Data
100 Hour Rate: 446
20 Hour Rate: 401
5 Hour Rate: 317
Minutes of Discharge @ 75 Amps: 245
Minutes of Discharge @ 25 Amps: 915
Case Material
Polypropylene / Heat Sealed
*We are in the process of making a color change from green to red cases. As we sell through our green inventory, some customers may still receive green batteries.
Terminal Options:
Large "L"
Small "L"
Additional Information
U.S. Battery’s Flooded Lead Acid batteries are engineered and proven to provide the fastest cycle-up to full rated capacity, and have the highest total energy delivered over the life of the battery.
Made in America, U.S. Battery FLA batteries utilize the company’s exclusive XC2™ formulation and Diamond Plate Technology®, allowing them to reach peak capacity in fewer cycles, higher total energy delivery, and an extended battery life. The high charge efficiency design also meets new California Energy Commission regulations for combined charger/battery charge efficiency. And because of U.S. Battery’s unique design and variety of sizes in 6, 8 and 12-volt applications, the FLA batteries offer the most compatibility with the wide range of chargers used in the field. This is why U.S. Battery’s proven manufacturing processes, along with its reliable and dependable service, continues to be the most trusted world-wide brand for more than 90 years.
U.S. Battery Product Comparison
 US REL16 XC2 |  US L16E XC2 |  US L16 XC2 |  US L16HC XC2 |  US AGM L16 |
|
|---|---|---|---|---|---|
| Chemistry | Flooded Lead-Acid | Flooded Lead-Acid | Flooded Lead-Acid | Flooded Lead-Acid | AGM |
| Dimensions | Without Handles 11.875″L x 7.125″W x 16.75″H | Without Handles 11.875″L x 7.125″W x 16.75″H | Without Handles 11.875″L x 7.125″W x 16.75″H | Without Handles 11.875″L x 7.125″W x 16.75″H | 11.61″L x 7″W x 16.65″H |
| BCI Group Size | 903 | 903 | 903 | 903 | 903 |
| Standard Terminal | Large “L” | Large “L” | Large “L” | Large “L” | Dual |
| 20 Hour Rate | 401 | 360 | 385 | 420 | 414 |
| Min. @75 Amps | 245 | 198 | 225 | 250 | 275 |
| Min. @25 Amps | 915 | 795 | 865 | 965 | 984 |
